SCB Drive 2030

SCB Drive 2030 SinCos

  • Robust motor with digital encoder or SinCos encoder for precise and dynamic applications.
  • High and approximately constant torque for high dynamics and precision throughout the entire deflection.
  • Ideally suited for 20/30 mirror apertures.
Specification:Value:Unit:
Coil resistance0.95
Coil inductance350µH
torque constant0.018Nm/A
Rotor inertia3.45 × 10⁻⁷kg x m²
RMS current5A
Max. deflection± 11,25degree
Weight0.31Kg
operating temperature+5 to +50°C

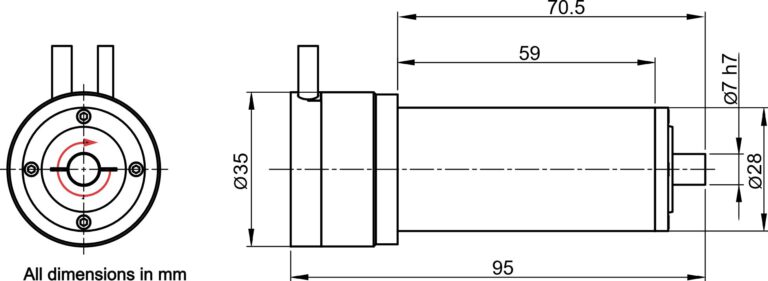

Dimensions (mm)
